HOW TO DRAW A CHEMICAL PLUME

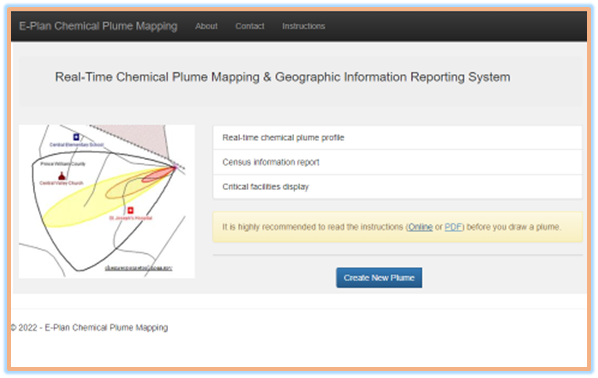

The University of Texas at Dallas (UT Dallas) developed the E-Plan real-time chemical plume modeling for first responders use only. This tool is used primarily for planning situations, where the goal is to assess the threat posed to the general public by a chemical release. Authorized E-Plan users can use this mapping tool to draw a chemical plume and view census information on map. Public facilities such as schools and hospitals are provided within the potential impacted circle. This plume model has been extensively tested with selected first responders.

For more information on how to draw a plume, please read the E-Plan Chemical Plume Mapping Training Manual (https://plume.erplan.net/eplume/helps/E-PlanChemicalPlumeMappingTrainingManual.html).
